MOTORISED BARREL PUMP Details

PP DIAPHRAGM TYPE BARREL PUMP (AC / DC)

MODEL: ACAD40 / DCAD40

MODELACAD40DCAD40
Pump body materialEPDMEPDM
Maximum flow rate40 LPM40 LPM
Maximum head15 mtr15 mtr
Voltage230 V AC12 V DC
Self priming YesYes

CI/SS DIAPHRAGM TYPE BARREL PUMP

PUMP MODELMDB CI-1HDB SS-1
CAPACITY16 LPM16 LPM
INLET X OUTLET SIZES1” X 1”1” X 1”
WEIGHT
MATERIAL OF CONSTRUCTIONCAST IRON CONSTRUCTIONSS CONSTRUCTION

SS CENTRIFUGAL MOTORISED BARREL PUMP

MODEL MBSS-1
OUTER DIA :- Ø40 mm,

Power :- 0.88 kw,

Speed :- 10000 RPM, Voltage :- 220v , 50 Hz,



HEAD IN MTRS0510152023
CAPACITY IN LPM433126166.3SHUT OF
AMPERE2.82.82.52.52.22.0

PP CENTRIFUGAL MOTORISED BARREL PUMPP

MODEL MBPP-1
OUTER DIA :- Ø40 mm,

Power :- 0.88 kw,

Speed :- 10000 RPM, Voltage :- 220v , 50 Hz,



HEAD IN MTRS0510152023
CAPACITY IN LPM433126166.3SHUT OF
AMPERE2.82.82.52.52.22.0

ALUMINIUM CENTRIFUGAL BARREL PUMP

MODEL MBAL-1
OUTER DIA :- Ø40 mm,

Power :- 0.88 kw,

Speed :- 10000 RPM, Voltage :- 220v , 50 Hz,

HEAD IN MTRS051012
CAPACITY IN LPM403015SHUT OF
AMPERE2.42.32.32.3

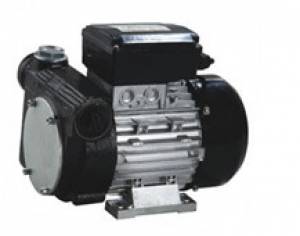

ROTARY VANE MOTORISED BARREL PUMP

DC / AC diesel pump Cast iron pump body complete anticorrosive paint



ModelFlow rateL/min (max)VoltageCurrentAmp (max)Duty cyclemaxRPMConnectionsWeightkg
DCTP 60 RVB60121830 MIN28003/4″4.2
DCTP 60 RVB6024930 MIN28003/4″4.2
ACTP 60 RVB802306CONTINUOUS2801”12 kg
